Sandblasting hose
Sandblasting hose for metal surface cleaning and rust removal, with 12 bar working pressure, abrasion-resistant lining, and custom sizes.
- Working pressure
- 12 bar
- Minimum burst pressure
- 48 bar (4:1 ratio)
- Inside diameter
- 3/4 in – 4 in (custom to 14 in)
- Maximum length
- 61 m ± 1%
Request a quote for this model.
Product Overview
Sandblasting hose is designed for use with pneumatic sandblasting equipment for rust removal, surface cleaning, and abrasive finishing of metal surfaces.

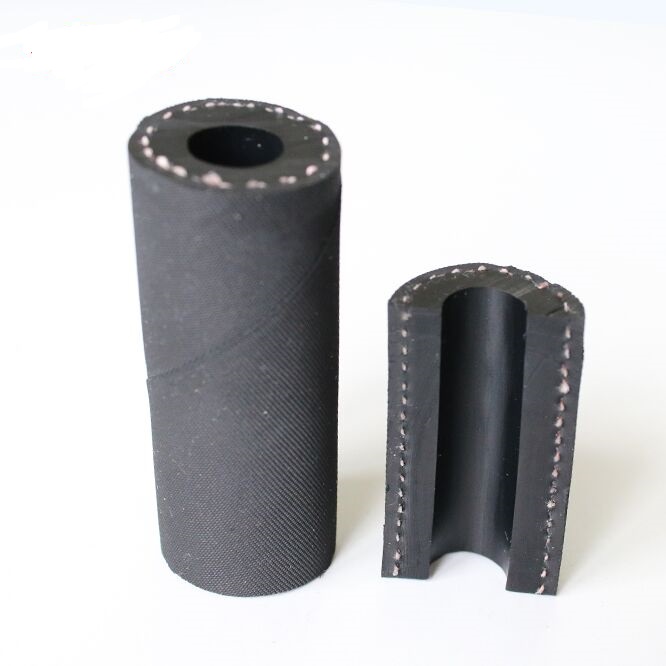

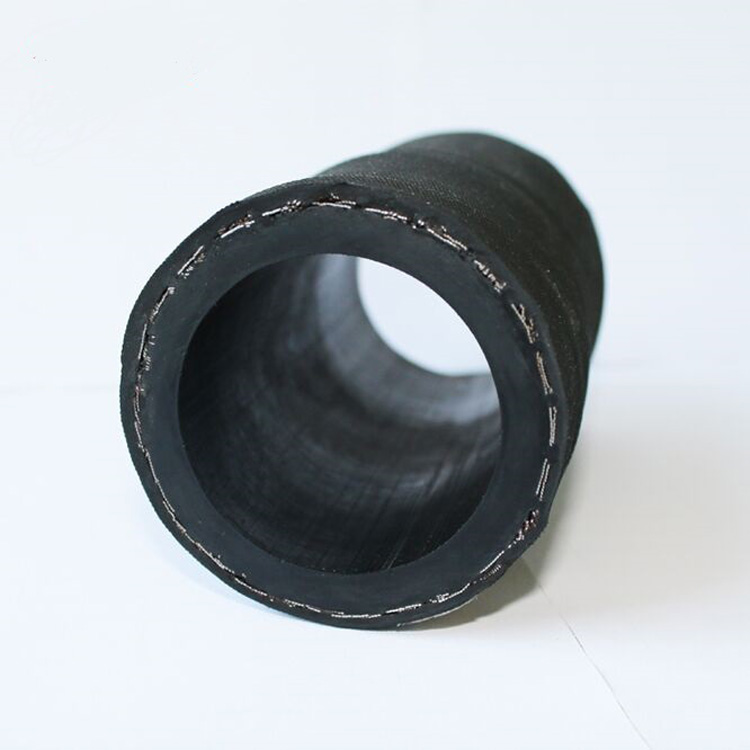

The inner rubber layer provides abrasion resistance. The outer rubber cover provides aging resistance and wear resistance. Textile cord reinforcement is available in 2-layer or 4-layer constructions, depending on the hose size.
The standard working pressure is 12 bar. The burst pressure is at least four times the working pressure. Abrasion resistance options of 50 mm³, 65 mm³, and 110 mm³ are available, according to ISO 4649:2002. This standard reference applies to the stated abrasion resistance information; it does not establish certification of the complete hose or conformity with other hose standards.
The minimum burst pressure of 48 bar is calculated as 4 × 12 bar from the stated burst-to-working-pressure ratio; it is not a separately listed test result. The listed dimensions and pressures describe the standard specifications; customized specifications depend on the requested configuration.
Key Features
- Abrasion-resistant inner rubber layer.
- Aging-resistant and wear-resistant outer rubber cover.
- Textile cord reinforcement with 2 or 4 layers, depending on size.
- Standard working pressure of 12 bar; minimum burst pressure 48 bar (4:1 ratio).
- Abrasion resistance options of 50 mm³, 65 mm³ and 110 mm³ (ISO 4649:2002).
- Standard inside diameter range of 3/4 inch to 4 inches, customizable up to 14 inches.
- Maximum standard length of 61 m ± 1%.
- Customizable inside diameter, outside diameter, length, pressure and cover color.
Specifications
| Size | Cord layers | Working pressure | Maximum length |
|---|---|---|---|
| 3/4 in (19 ± 0.4 mm) | 2 or 4 | 12 bar | 61 m ± 1% |
| 7/8 in (22 ± 0.4 mm) | 2 or 4 | 12 bar | 61 m ± 1% |
| 1 in (25 ± 0.8 mm) | 2 or 4 | 12 bar | 61 m ± 1% |
| 1-1/4 in (32 ± 1.0 mm) | 2 or 4 | 12 bar | 61 m ± 1% |
| 1-1/2 in (38 ± 1.0 mm) | 2 or 4 | 12 bar | 61 m ± 1% |
| 2 in (51 ± 1.2 mm) | 2 or 4 | 12 bar | 61 m ± 1% |
| 2-1/2 in (64 ± 1.2 mm) | 4 | 12 bar | 61 m ± 1% |
| 3 in (76 ± 1.4 mm) | 4 | 12 bar | 61 m ± 1% |
| 4 in (102 ± 1.6 mm) | 4 | 12 bar | 61 m ± 1% |
Applications
- Pneumatic sandblasting equipment.
- Sandblasting for rust removal from metal surfaces.
- Metal surface cleaning and abrasive finishing.
Customization Options
- Inside diameter
- 3/4 inch to 14 inches
- Outside diameter
- According to customer requirements
- Hose length
- According to customer requirements
- Pressure
- According to customer requirements
- Outer cover color
- According to customer requirements
Sizes & Supply
Standard inside diameter range: 3/4 inch to 4 inches; customizable inside diameter range: 3/4 inch to 14 inches.
Outside diameter, hose length, pressure and outer cover color are produced according to customer requirements.
Technical Documents
Documents are published per model — ask our sales team for the file you need.
Frequently Asked Questions
What is the working pressure of the sandblasting hose?
The standard working pressure is 12 bar. The minimum burst pressure is 48 bar, calculated from the stated minimum 4:1 burst-to-working-pressure ratio.
What sizes and lengths are available?
The standard inside diameter range is 3/4 inch to 4 inches, and the maximum standard length is 61 m ± 1%. Inside diameters from 3/4 inch to 14 inches can be produced as custom specifications.
Can the hose be customized?
Yes. Inside diameter, outside diameter, hose length, pressure and outer cover color are produced according to customer requirements.
What abrasion resistance options are offered?
Abrasion resistance options of 50 mm³, 65 mm³ and 110 mm³ are available, tested according to ISO 4649:2002. This reference applies to the abrasion resistance information and does not establish certification of the complete hose.
